What Is the Difference Between GPR and Ferro Scanning?

At a high level, both techniques are forms of non‑destructive testing of concrete. They allow you to “see” into a slab or wall without breaking it open, but they work in very different ways and produce different strengths of information.

• Ferro scanning: Electromagnetic induction method to locate steel reinforcement close to the surface. Excellent for cover depth and bar diameter estimation but limited depth penetration, blind to non-metallic features.
• Ground Penetrating Radar (GPR): uses pulses of radio waves that travel into the concrete and reflect from interfaces and objects, metallic and non-metallic. It can see deeper and can give you information on thickness and voids, but is less accurate for bar diameter. Very good for cover depth and bar diameter estimation. Limited penetration depth and blind to non-metallic features.

On many jobs, the question is not “GPR vs ferro scanning?” so much as “what combination of both gives the safest and most economical answer?” Castle Surveys Ltd is set up to answer exactly that.

Understanding the Two Giants of Concrete Scanning

Introduction: Why Precision Matters in Structural Investigations

For structural engineers, getting reinforcement wrong is not a minor detail; it goes straight to the heart of capacity, deflection and safety. Site managers care for a different reason: when a core rig hits a tendon or main bar, there is immediate risk to people, programme, and cost.

Using the right concrete scanning method before intrusive works:

• Reduces the risk of hitting rebar, PT tendons, and services.
• Gives engineers reliable data on bar spacing, cover and layout for assessment.
• Prevents abortive cores, broken bits, and last‑minute design changes.

So choosing correctly between GPR vs ferro scanning is not academic, it directly affects risk, time, and budget.

Brief Overview: What Is Ferro Scanning?

Ferro scanning (often called ferroscan, cover‑meter scanning or electromagnetic scanning) uses an electromagnetic induction sensor that responds to steel within a limited range.

In practice, that means:

• It is very good at detecting the first layer of reinforcement.
• It can estimate bar cover depth with high accuracy and provide approximate bar diameters, within typical tolerances.
• It is usually limited to shallow depths, typically up to about 120–200 mm depending on bar size and spacing.

Ferro scanners excel when the design question is, “What size bars were put in, and how much cover do we actually have?”

VIEW OUR FERRO SCANNING SURVEYS SERVICES

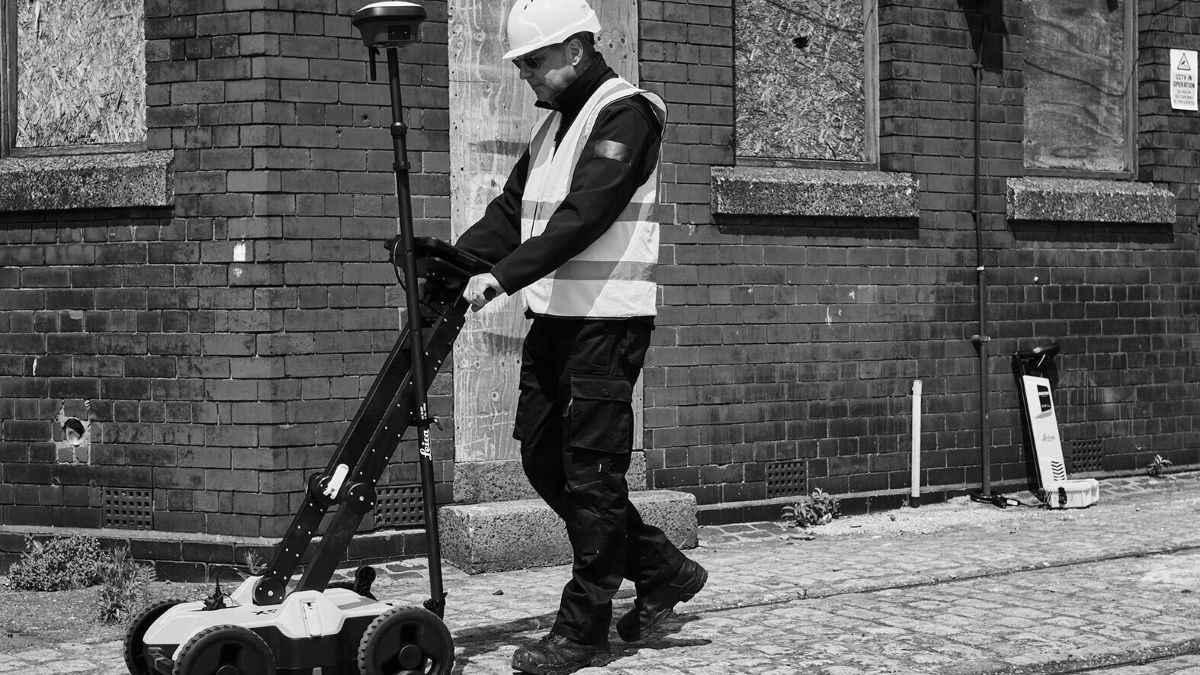

Brief Overview: What Is GPR?

Ground Penetrating Radar (GPR) sends high‑frequency radio‑waves into the concrete and measures the reflected signal when it encounters a change in material or a buried object.

This allows it to:

• Detect metallic and non‑metallic inclusions such as rebar, PT ducts, plastic conduits, voids and interfaces.
• Reach significantly greater depths than ferro scanning, often 300–450 mm in concrete and more with lower frequency antennas and lower resolution.
• Give valuable information on slab thickness and potential voids under slabs.

GPR therefore becomes the tool of choice when you want to understand the full depth profile, not just the top mat of reinforcement.

VIEW OUR GBR SURVEYS SERVICES

GPR vs Ferro Scanning: A Direct Technical Comparison

The side-by-side comparison makes it easier to select among the methods. Both are non-destructive and both are widely used to map concrete reinforcement, but each technique has its own particular strengths and limitations.

Key differences at a glance

This is not a theoretical comparison for Castle Surveys. We will recommend a ferro scanning pass to nail bar cover and diameter on many jobs. We will recommend GPR pass to understand thickness, secondary mats, post tension cables and hidden services.

When to Choose Ferro Scanning (Electromagnetic)

There are plenty of scenarios where ferro scanning is the most efficient and cost‑effective first choice.

Calculating Structural Capacity: Determining Bar Size and Spacing

When structural engineers are assessing load‑bearing capacity, particularly in older buildings where as‑built drawings are missing, knowing rebar size and spacing is vital.

Ferro scanning helps by:

• Providing indicative bar diameters across a grid, which can be checked against design assumptions.
• Mapping the exact spacing and pattern of the first mat of reinforcement.
• Confirming whether reinforcement is present where design says it should be, or whether repairs/additions have altered patterns.

That data feeds directly into calculations for bending, shear, punching and overall capacity.

Quality Control for New Builds: Verifying Concrete Cover

On new construction, ferro scanning is often used as quality control to check that the steel fixer and pour achieved the designed cover.

This is important because:

• Insufficient cover exposes rebar to moisture and carbonation, accelerating corrosion.
• Excessive cover can reduce lever arms and reduce structural capacity.

A Rebar detection survey with ferro scanning gives quick, non‑destructive checks of cover over sample areas, satisfying both engineers and warranty providers that the work matches specification.

Cost‑Effectiveness for Shallow Rebar Mapping

If you only require a shallow slab, with a known thickness and rebar expected in the first 100–150 mm, then ferro scanning is often the most economical option. It offers:

• Rapid scanning of targeted grid areas.
• Clear visuals for bar layout without the cost of deeper, more complex GPR processing.

For that kind of task, paying for deeper radar penetration may be unnecessary.

When GPR (Ground Penetrating Radar) Is Essential

There are other scenarios where GPR is not just “nice to have”, it is the only realistic way of getting the information you need.

Scanning Deep Slabs and Thick Retaining Walls

GPR really shines in thicker or more complex concrete.” Studies and industry practice show that typical GPR configurations are capable of mapping reinforcement at depths of 300-400 mm with high resolution, or deeper where coarse resolution is acceptable.

This makes it invaluable for:

• Transfer slabs, podium decks and deep foundations.
• Retaining walls and deep beams.
• Multi‑storey structures where several layers of reinforcement exist.

In these cases, ferro scanning simply cannot “see” the deeper reinforcement layers.

Locating Non‑Metallic Obstructions (Plastic Pipes and Voids)

Because GPR responds to any significant contrast in electrical properties, it can detect more than just steel.

GPR can help identify:

• Plastic conduits and drainage lines within or beneath slabs.
• Voids and de‑bonded areas under warehouse floors or slabs‑on‑grade.
• Changes in materials, interfaces, or honeycombing.

That makes GPR the preferred concrete scanning method whenever you are concerned about voiding, hidden services, or ground conditions below a slab.

Identifying Post‑Tension (PT) Cables and Live Services

Post‑tensioned structures present a serious risk if drilling or coring is undertaken blindly. Striking a stressed tendon can cause instant, dangerous release of energy.

High‑frequency GPR antennas are particularly effective at locating PT ducts and distinguishing them from traditional rebar, provided spacing and geometry allow good interpretation.

In addition, GPR can be used to trace live services (power ducts, communication conduits) where they pass through concrete elements, helping avoid potentially catastrophic hits.

Choosing the Right Method: GPR, Ferro Scanning, or Both?

For many projects, the sensible question is not “which one is better?” but “what combination gives the safest decision at the lowest overall risk?”

Castle Surveys Ltd uses a practical, decision‑matrix approach to concrete investigations.

When to Commission a Standalone Ferro Scan

Ferro scanning on its own is usually appropriate when:

• You are dealing with relatively thin slabs, typically under 150 mm.
• Your primary need is cover depth and bar diameter in the first reinforcement layer.
• There is no requirement to map deep elements, slabs‑on‑grade or voids.

Examples include:

• Checking reinforcement layouts prior to local core drilling.
• Cover checks for warranty sign‑off on new suspended slabs.
• Sampling checks on balcony slabs or stair landings.

In these cases, ferro scanning delivers quick, cost‑effective answers with minimum set‑up.

When GPR Is the Primary Requirement

GPR becomes the lead method when:

• You need to see deep into the concrete, up to several hundred millimetres.
• You suspect multiple layers of reinforcement or hidden features.
• You must locate non‑metallic services, conduits, or voids.

Typical examples:

• Assessing deep transfer slabs before major plant penetrations.
• Investigating suspected voiding under warehouse slabs.
• Tracing services and PT ducts prior to significant structural alterations.

Here, ferro scanning may be used as a supplementary tool at the surface, but the heavy lifting is done by radar.

The Benefit of Integrated Scanning

On complex projects, particularly in congested urban environments, Castle Surveys often combines GPR and ferro scanning into a single integrated investigation.

Doing so allows us to:

• Cross‑validate rebar position and cover depth between two independent technologies.
• Use ferro scanning to refine diameter estimates, while GPR confirms deeper layers and slab thickness.
• Reduce “false positives” in very congested reinforcement, where either system alone may be ambiguous.

For sites in London or other major cities, this full structural picture is invaluable. When you are drilling into heavily reinforced transfer structures above live public areas or sensitive facilities, that assurance is worth far more than the marginal additional survey cost.

Delivering RICS‑Standard Data and Professional Reporting

Regardless of method, what really matters is how the data is interpreted and reported. Castle Surveys provides:

• RICS‑aligned methodologies and QA for all scanning work.
• Clear drawings and visualisations showing bar patterns, “no‑drill zones”, and recommended safe zones.
• Reports written in language structural engineers can use directly for design and sign‑off, supporting Professional Indemnity (PI) requirements.

The technology is only as good as the surveyor and engineer behind it. That is why choosing a specialist provider, rather than simply hiring a scanner, makes such a difference to risk and reliability.

Conclusion: Making the Right Choice for Your Site

The difference between GPR and ferro scanning comes down to physics and purpose:

• Ferro scanning, based on electromagnetic induction, is the best choice for shallow rebar mapping, cover and diameter estimation in the first reinforcement layer.
• GPR, based on radio‑wave reflections, is essential for deeper investigations, multi‑layer reinforcement, voids, non‑metallic conduits and PT cable location.

For many real‑world schemes, especially high‑value or high‑risk projects, the safest route is a combined survey where both methods are used together and interpreted by experienced professionals.

If you are unsure which scan your project needs, or you simply want to avoid booking the wrong service, speak to the technical team at Castle Surveys Ltd. A brief consultation can clarify whether Ferro scanning, Ground penetrating radar surveys, or an integrated approach will give you the most robust data for your design, drilling, or structural assessment.

Unsure which scanning method suits your site? Contact Castle Surveys for a free initial assessment or a tailored quote, and ensure your next concrete intervention is based on the best information available.
