What Exactly Is Included in a Standard Elevation Survey?

Whether you’re preparing a planning application, designing an extension, or restoring a listed building, one thing remains true – accurate facade data matters. You want to know exactly what you’re working with, down to every sill and parapet. Yet most people commissioning a survey aren’t sure what an elevation survey actually delivers.

So, let’s clear that up. This guide walks you through what’s captured when surveying elevations, how the data’s collected, and what determines the cost. By the end, you’ll know precisely what to expect from your next elevation survey (and how to get the most value from it).

What Is an Elevation Survey?

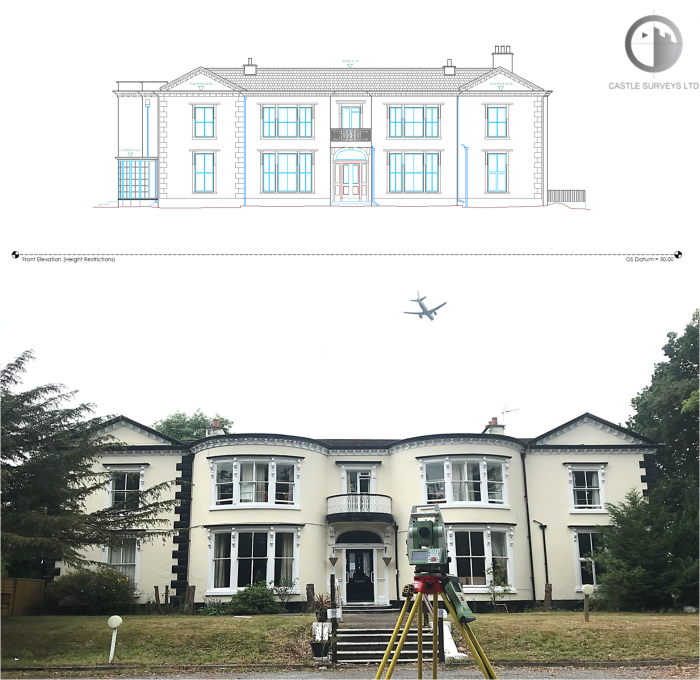

At its simplest, an elevation survey provides an accurate, scaled drawing of a building’s exterior facade – or, in some cases, interior walls if the project calls for it. Think of it as a straight-on view showing the structure’s heights, proportions, and detailing exactly as they exist in reality.

Architects use these drawings for planning applications, design drawings, and renovation projects because they show every part of a building’s appearance, not just its footprint. They also form a key part of an architectural facade survey, helping planners assess heritage value, materials, and compliance with design regulations.

In the past, elevation surveys were produced manually, with tapes and distos. That method worked – but it was slow, painstaking, and prone to errors. Today, advanced technology makes the process faster, more accurate, and far more detailed.

Key Features Captured When Surveying Elevations

This is where the detail comes in. A standard elevation survey includes far more than just a basic outline of the structure. Every feature visible on the facade is carefully measured and represented. Here’s what you can expect in your deliverables.

Structural outlines and rooflines

The backbone of any elevation drawing. The survey includes the full external profile of the building, showing wall lines, gables, roof pitches, ridge and eaves heights, and chimneys. On more complex structures, like heritage or industrial buildings, even secondary roof levels and plant rooms are mapped precisely.

These features give architects the vertical information they need to ensure new designs fit properly – especially important when matching adjacent roof heights or assessing lines of sight.

Openings and fenestrations

Every window, door, and glazed panel is positioned with care, right down to sill and lintel heights. You’ll see window frames, mullions, glazing bars, and even bay projections plotted accurately.

This level of precision helps architects reuse openings, restore heritage glazing, or replace joinery without guesswork. It also ensures that your planning permission drawings reflect the building exactly as it stands.

Architectural and decorative details

This part always surprises clients. An elevation survey doesn’t stop at outlines – it captures the decorative and historic elements that give buildings their character. That includes string courses, cornices, plinths, stone or brick patterns, pilasters, columns, carvings, and signage.

On heritage projects, detail is everything. I’ve seen restoration architects rely heavily on these data points to replicate missing mouldings or match historic features. Having accurate measurements avoids discrepancies later in the design phase.

Attached infrastructure and services

Modern buildings often have external fixtures that must be accounted for. The survey captures rainwater pipes, soil vents, external vents, lighting units, fixed ladders, fire escapes, ducting, and even satellite dishes or security cameras.

These details matter more than people realise. Knowing where these services run prevents costly clashes when you modify facades or add extensions.

Ground levels and surrounding topography

Finally, the relationship between the building and ground is measured. Surveys show step and ramp positions, patio or pavement levels, and adjacent ground heights, often tied to an Ordnance Survey datum.

This helps assess accessibility, drainage, and boundary alignment, all crucial for both planning and construction.

How Modern Surveyors Capture Elevation Data

Gone are the days of surveyors standing in the rain with tape measures and clipboards. Today, elevation surveys lean on precision, speed, and data integrity through 3D laser scanning technology.

Laser scanners capture millions of data points per second, building what’s known as a point cloud. Each point represents a spot on the building’s surface, collectively forming an exact 3D representation of the structure. From that digital model, 2D elevation drawings or full 3D BIM datasets can be produced with remarkable accuracy.

This approach also enhances safety. Drones can be used for high or hard-to-reach elevations such as spires, rooflines, or upper-storey detailing. By combining terrestrial and aerial scans, you get a complete dataset without anyone needing to work at height.

For large or complex sites, such as heritage streetscapes or city blocks, this modern workflow ensures consistency between adjoining buildings, which is particularly useful for rights of light or façade uniformity studies.

VIEW OUR 3D LASER SCANNING SERVICES

How Much Does an Elevation Survey Cost?

Now for the big question that everyone asks: what does it cost?

The truth is, there isn’t a single answer – but understanding the main factors helps you estimate what to budget. Here’s what typically influences an elevation survey cost.

1. Size and scale

The larger the facade, the longer the capture and processing time. A single house frontage might be scanned and drawn in a day, while a commercial warehouse or multi-elevation streetscape could take several.

For multi-building sites, the benefit of scanning is that setup time is efficient – once equipment’s in place, data collection is swift.

2. Level of detail (LOD)

Not every project needs the same depth of information. A standard planning submission might only require outline features, openings, and ground levels.

However, if you’re working on a conservation project or recording listed building detail, every stone joint and cornice line might be included. Naturally, the higher the level of detail, the more drawing time is required, but it also means you’ll have a dataset capable of supporting intricate design and heritage documentation later.

3. Accessibility and safety

Some buildings are easy to capture – flat ground, open space, short elevations. Others, not so much. Tight courtyard access, traffic management requirements, or restricted rooflines can increase survey complexity.

In these cases, additional equipment such as drones, remote scanners, or long-range total stations come into play, adding slightly to the price but also to the safety and accuracy of your results.

4. Deliverable format

Finally, what do you want at the end? Standard 2D AutoCAD drawings are generally the most cost-effective option, ideal for planning or design use.

For architects working in BIM or Revit environments, having the point cloud data modelled into a full 3D format simplifies integration with other survey datasets, such as floor plans and sections from a full measured building survey.

If you’re currently budgeting or scoping a project, contact the team for a bespoke elevation survey cost tailored to your site.

VIEW OUR MEASURED BUILDING SURVEY SERVICE

Why You Need Accurate Elevations for Your Next Project

So, why go to this level of precision in the first place?

Accurate elevations prevent unnecessary hold-ups during planning and design. Poor or outdated drawings are one of the main reasons applications get delayed or rejected. With a detailed elevation, planning officers can immediately assess how proposed changes will affect the street scene or neighbouring structures.

For design teams, accurate elevations mean peace of mind – no more guessing at floor-to-ceiling heights or window proportions. For developers and builders, it means fewer site queries and fewer expensive mistakes during construction.

Projects like home extensions, new façades, and conservation schemes all rely on high-quality elevation data. When integrated with a full measured building survey, the overall model ensures every dimension aligns from ground to roof ridge.

Get Precise Facade Data with Castle Surveys

If you need clarity, accuracy, and dependable deliverables when surveying elevations, Castle Surveys is ready to help. Our experienced team uses advanced 3D laser scanning technology to capture highly detailed elevation data safely and efficiently, no matter how complex the site.

We deliver data in the format that suits your needs – from traditional 2D CAD files to rich point cloud datasets and BIM-ready models – allowing your project team to design and plan with confidence.

When you’re ready to move forward, contact us for a bespoke elevation survey cost and discover just how straightforward it can be to get truly accurate facade data from one of the UK’s leading surveying specialists.

REQUEST A QUOTE

This post was written by Paul Jackson
