Topographic Surveys for Brownfield and Greenfield Sites

Understanding the land beneath your feet is the first and most important step in any construction or development project. Accurate land data is the cornerstone of every successful design and construction phase, whether it’s revitalising a once-bustling industrial site or transforming a section of open countryside into a new housing development.

However, not every piece of land is made equally. Surveying a brownfield site is completely different from surveying a greenfield site. Although the two require different techniques, technologies, and safety considerations, they share fundamental survey principles. Ignoring these variations may result in errors, needless expenses, or even project delays.

We at Castle Surveys have personally witnessed this in hundreds of projects. Some take place over rolling farmland with concealed drainage channels, while others start on abandoned factory grounds dotted with the remains of outdated infrastructure. Both settings have their own special difficulties and benefits, and they both merit a survey strategy that is specifically suited to their personalities.

Using surveying best practices and real-world insights, this article examines the practical distinctions between brownfield and greenfield topographic surveys. Knowing these differences can help local authorities, architects, real estate developers, and planning consultants make more informed and seamless early-stage project decisions.

What Are Brownfield and Greenfield Sites?

It’s important to define these two land types in the context of UK planning before comparing surveying techniques.

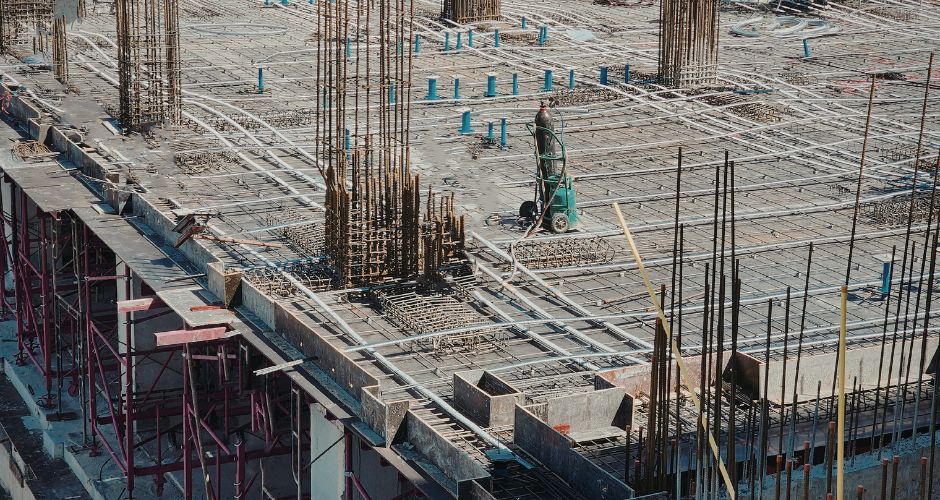

Previously developed land is referred to as a “brownfield site.” These places may seem ugly or deserted, and they frequently contain the remains of infrastructure, buildings, or foundations. Consider abandoned commercial lots in towns and cities, abandoned factories, or abandoned parking lots. Redeveloping brownfield land reduces urban sprawl, supports government-led regeneration goals, and is frequently given favourable consideration during planning.

However, there’s a catch. Brownfield sites rarely come without legacy issues – subsurface utilities, possible contamination, restricted access or unstable ground conditions. All these factors influence how surveyors approach data capture.

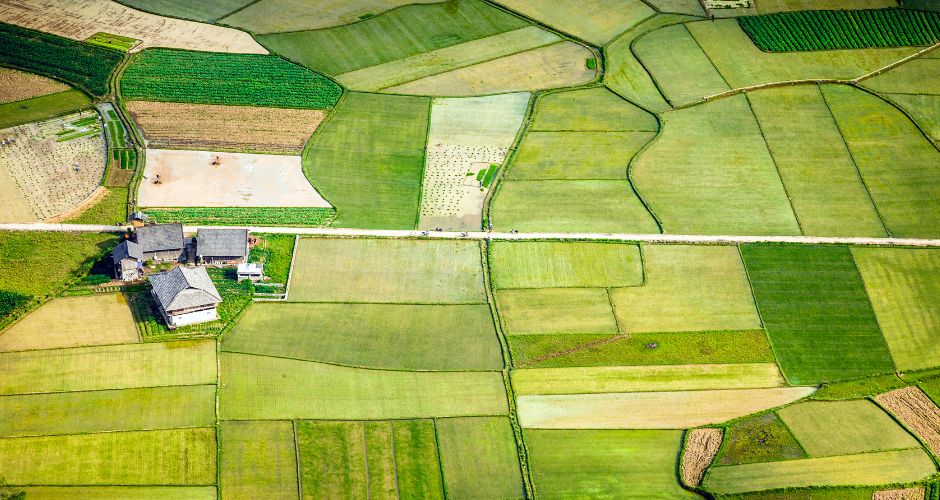

Greenfield sites, in contrast, are undeveloped tracts of land such as agricultural fields, moorland, or woodland on the outskirts of built-up areas. These represent a “blank canvas” opportunity for new housing, infrastructure, and renewable energy projects. Yet, developing them can raise ecological and planning sensitivities, particularly where habitats or landscapes of environmental significance exist.

In short, brownfield vs greenfield is about much more than appearance. It’s about what lies beneath the surface, how each site interacts with the planning system, and how surveyors must adapt their techniques accordingly.

Recognising the Planning Environment

Planning policy in the UK incorporates the distinction between brownfield and greenfield sites. Whenever feasible, the National Planning Policy Framework (NPPF) promotes the reuse of previously developed land. Brownfield redevelopment is frequently given priority by local authorities in order to relieve pressure on rural areas, making these locations essential to sustainable growth goals.

This may result in more accommodating planning permissions for developers on brownfield land, particularly when regeneration is a key goal. However, simplicity does not equate to flexibility. Extensive site investigations, such as utility mapping, contamination risk assessments, and thorough topographic surveys to document current structures and ground conditions, are frequently required for brownfield plots.

Greenfield sites are scrutinised differently even though they are usually cleaner and free of legacy problems. Planning applications frequently need to show how development will respect the surrounding landscape, manage surface water, and protect biodiversity. For these locations, topographic surveys are essential for master planning layouts, flood risk assessments, and ecological assessments.

So, while both land types require topographic surveying, the motivations and challenges differ significantly. Let’s explore what this looks like in practical surveying terms.

Challenges in Brownfield Land Surveys

Existing Infrastructure and Site Constraints

If you have ever visited a brownfield site, you are aware that they are rarely simple. Data collection is frequently complicated by buried structures, overgrown foundations, broken concrete, and abandoned buildings. These circumstances require perseverance, creativity, and, most importantly, the appropriate technology.

A brownfield land survey does more than just draw boundaries and contours. Ground levels, drainage channels, retaining walls, structural remnants, and any visible service covers or inspection chambers are all examples of visible and pertinent features that affect the potential for redevelopment.

Consider one of our actual projects, which is the conversion of an abandoned manufacturing facility in the Midlands into a mixed-use community. Although the surface appeared straightforward, there were decades’ worth of layers beneath it, including filled basements, unnecessary cable ducts, and redundant drainage. Conventional mapping would not have been adequate. Rather, we combined underground utility detection, terrestrial laser scanning, and total station data to create a single 3D dataset. This made the potentially disastrous excavation process into a carefully thought-out design stage.

An additional dimension is added by historical data. Archival plans are frequently the starting point for architects and engineers, but they may be out-of-date or erroneous. Cross-checking them during the survey helps avoid later, expensive misunderstandings. Combining historical plans with contemporary survey results is an artistic endeavour that aids in visualising both the past and the present.

REQUEST A QUOTE

Utility Mapping and Hidden Hazards

Brownfield sites are replete with utilities, which are the unseen backbone of any urban setting. These are frequently not properly documented. Pipes may have been constructed decades ago, rerouted, or abandoned. Excavation poses a risk to both project timeliness and safety in the absence of precise mapping.

Therefore, it is crucial to incorporate mapping of subterranean utilities into a topographic survey. We can detect both live and redundant services using electromagnetic detection, ground-penetrating radar (GPR), and thorough on-site verification. By incorporating this data into the final CAD or GIS deliverable, design teams are guaranteed to comprehend the site’s complexity prior to construction.

Contaminated land presents additional challenges. Brownfield sites may contain asbestos fragments, fuel residues, or hazardous soils. Surveyors working on these plots must adhere to strict health and safety regulations, which include wearing personal protective equipment (PPE) and, in some cases, using remote scanning devices instead of entering restricted areas. For instance, long-range laser scanners and mobile mapping systems mounted on cars or poles enable safe data collection without needlessly exposing workers.

Restricted access is a problem in addition to environmental safety. Narrow entry points, shaky ground, and remaining site structures may limit the instrument’s line of sight. These situations call for flexible technology combinations, such as total stations for enclosed spaces, GNSS for open zones, and UAV-mounted photogrammetry for inaccessible rooftops or courtyards. It blends science and flexibility.

Considerations When Surveying Greenfield Sites

There may be fewer safety hazards when surveying an unexplored site, but there are more environmental and geographic factors to consider.

Natural Features and Ecological Factors

Though appearances can be deceiving, strolling around a greenfield site is frequently a welcome change from the confines of an industrial plot. Measurement techniques are influenced by the land’s natural drainage patterns, vegetation cover, and undulations.

Surface levels, boundaries, hedgerows, trees, watercourses, and any artificial features like fences or gateways must all be accurately represented in a survey on a greenfield site. A single dip in the ground could change a proposed floor level by several centimetres or alter a drainage calculation, demonstrating how much detail matters.

Drones are incredibly useful for more extensive greenfield surveys, as we have discovered. They can swiftly gather terrain data and aerial photos over large areas that could take days to cover by hand. Drones aren’t always appropriate in delicate ecological areas, though. There may be flight restrictions or the need for non-intrusive methods at locations inside or close to protected areas like SSSIs, nature reserves, or green belts.

Lightweight GNSS devices or portable laser scanners can effectively record features in these situations while causing the least amount of disturbance to the ground. When combined with environmental coordination, such as collaborating with ecologists during breeding seasons or steering clear of wetland migration routes, it guarantees adherence to both environmental regulations and common sense.

Planning and Pre-Construction Requirements

Greenfield topographic surveys are concerned with imagining what might be constructed, whereas brownfield surveys concentrate on analysing what is already there. These provide information for environmental assessments, site layout plans, and feasibility studies.

Detailed contour models, spot levels, drainage ditches, vegetation mapping, boundary demarcations, and access route identification are frequently among the main data outputs. Early access to accurate elevation and boundary data can significantly increase design accuracy. Without understanding the subtle rises and falls of the terrain, it would be impossible to design a retaining wall or drainage network for a site.

Visibility is another factor. Boundary evidence is frequently obscured by hedges or tree lines in rural and semi-rural areas. Surveyors have to find these carefully, sometimes working with landowners to verify fence lines. A minor mistake here could lead to major planning disagreements down the road.

Additionally, greenfield projects frequently connect directly to networks of highways and infrastructure, necessitating surveys that go beyond the immediate plot. Road levels, kerb lines, and adjacent utilities are captured to guarantee that the proposed site integrates smoothly with current access corridors.

Beyond design, greenfield surveys help environmental consultants create biodiversity offsetting plans, flood risk assessments, and landscape impact assessments. In order to model flow paths, vegetation coverage, or habitat area, each requires precise interpretation of ground data. It is a perfect illustration of how more comprehensive environmental planning is supported by topographic detail.

Comparing Survey Techniques and Equipment

Since every site is unique, effective surveyors adjust their methods accordingly. Let’s quickly contrast the approaches commonly used in greenfield and brownfield settings.

• Drone (UAV) surveys: These work best in expansive, open greenfield areas. Accurate digital terrain models and base maps are produced from high-resolution orthophotos produced by photogrammetry. Aerial scans supplement ground data collection for brownfield sites with intricate structures by exposing inaccessible roof regions or yard configurations.
• Laser scanners and total stations are perfect for brownfield and urban settings where accuracy around existing infrastructure is crucial. For BIM modelling or redevelopment planning, laser scanners produce precise point clouds that can identify every millimetre of deviation.
• Electromagnetic detection and ground penetrating radar (GPR) are essential for brownfield work. These tools protect excavation workers and direct design layouts by mapping subsurface utilities and voids.
• The foundation of contemporary surveying is the GNSS (Global Navigation Satellite System). GNSS offers precise georeferencing linked to Ordnance Survey coordinates, guaranteeing compatibility with all subsequent survey phases, whether it is utilised on open farmland or construction sites.
• SLAM-Based systems and mobile mapping are becoming more and more common for both kinds of sites. They save time and create highly visual models for planners by gathering dense spatial data while driving, flying, or walking through the region.

Several of these tools are frequently used in a single project at Castle Surveys. Drone imagery for terrain, GPR sweeps for utilities, and total station observations for precise boundaries could all be used on a single site. Regardless of the complexity of the site, integrating these layers into a single CAD or 3D point cloud guarantees that nothing is overlooked and clients receive a cohesive deliverable.

From Field to Final Model: Data Processing and Outputs

Field data only tells half the story. After being recorded, it is carefully processed to guarantee accuracy and usefulness. Due to their irregular geometry and mixed surface finishes, brownfield sites in particular frequently require complex data merging.

In the office, surveyors use geoid models, coordinate transformations, and least-square calculations to modify observations in order to preserve national uniformity. The final outputs display levels, utilities, boundaries, and feature coding ready for design input, regardless of whether they are in DWG, DXF, or BIM-ready Revit formats.

In contrast, greenfield datasets can be modelled into contour maps or digital elevation models (DEMs), which are widely used in drainage design, flood analysis, and planning layouts. Planners and developers can virtually explore the terrain from any location thanks to the increasing visualisation of these deliverables within reality cloud platforms.

In order to provide clients with a comprehensive view that transcends boundaries, Castle Surveys frequently combines its topographic data with the results of Measured Building Surveys or Infrastructure & Highways Surveys. Multi-phase developments where brownfield regeneration combines with new greenfield expansions are made easier by this integration.

Realistic Case Studies

To put this comparison into practice, think about two hypothetical projects that were handled differently from the start because of the type of site.

Case 1: Regenerating a Brownfield Industrial Plot

It was necessary to demolish a former factory in Nottingham and turn it into commercial space. There were several abandoned buildings on the property, all of which had underground tanks and pipework. Due to the uneven terrain and asbestos-contaminated debris, access was restricted.

Our approach combined total station control with long-range terrestrial laser scanning. Underground service detection identified live utilities feeding nearby properties, while drone flights complemented roof mapping when conditions permitted. The resulting survey dataset combined elements that were georeferenced within the same coordinate system, both above and below ground.

Designers were able to precisely position drainage and foundations thanks to this high-detail dataset, lowering risk prior to excavation. Additionally, it created a permanent digital record proving that planning submissions were done with due diligence.

Case 2: New Housing Scheme on a Greenfield Site

On the other hand, 25 hectares of farmland designated for residential development were part of a greenfield project in Leicestershire. Efficiency and environmental care were of utmost importance, with the exception of hedgerows and mild terrain.

After 48 hours of fieldwork, we used UAV mapping to create an intricate digital terrain model and orthophotos. Ground control points connected everything to Ordnance Survey data, and GNSS validation guaranteed elevation accuracy throughout the site. After that, we created surface files and 3D contour models that worked with the developers’ civil design program.

Drainage consultants and ecologists saved important weeks during the pre-application phase by avoiding revisits by incorporating this high-resolution survey early in the planning process. The client subsequently remarked that by exhibiting a thorough comprehension of site limitations, this one investment expedited permission.

Why Choosing the Right Surveyor Matters

In surveying, accuracy cannot be compromised, but flexibility is just as crucial. Surveyors who comprehend site context are necessary for both brownfield and greenfield projects. This includes not only what the instruments display but also the implications of the data for future planners, architects, and engineers.

Our guiding principle at Castle Surveys is simple: since every website is different, so should every survey. We tailor our approach to the challenges of your project, whether they are large rural areas requiring quick coverage and little disturbance, or small urban plots requiring centimeter-level tolerance.

This customised approach guarantees efficiency and safety on the job site in addition to adherence to client and company standards. Because all of our work adheres to ISO9001-certified quality processes, you can be sure that the deliverables you receive are transparent, consistent, and prepared for integration into any design workflow.

The Broader Impact: Surveying for Sustainable Development

Topographic surveys have a subtle influence on sustainable development that goes beyond technical accuracy. Redeveloping brownfield sites promotes urban revitalisation and lessens the strain on rural land. In the meantime, carefully thought-out greenfield projects add to the housing supply, but they depend on precise data to safeguard nearby ecosystems and responsibly manage water.

The environmental balance that authorities now require is supported by a thorough, site-specific survey. For instance, drainage engineers can effectively design sustainable urban drainage systems (SuDS) by knowing precise grade changes, and architects can preserve natural features in housing layouts by mapping mature trees.

A good survey is essentially a component of the environmental and social responsibility package rather than merely a technical exercise. It is used by experts in every field, from ecologists evaluating the impact on biodiversity to civil engineers planning earthworks.

Bringing It All Together

It’s amazing how two parcels of land, one with artefacts from the past and the other seemingly unaltered, can require the same amount of care and knowledge. Surveyors must navigate complexity on brownfield sites and capture subtlety on greenfield sites. For the built environment, both are essential.

When you combine precise topographic data with the right interpretation, you get clarity instead of guesswork, confidence instead of risk. That clarity is what every project manager, architect, and investor seeks before committing to the next phase.

Whether your next development involves regenerating a city warehouse or planning new homes across former farmland, Castle Surveys brings the technology and experience to help you move forward with certainty.

Planning a project on a brownfield or greenfield site? Contact Castle Surveys for tailored topographic land surveyors support. From feasibility through to detailed design, we provide the insight you need to build with confidence and accuracy.
