Real-World Applications of Mobile Mapping Systems

Mobile mapping systems are changing the game for how we handle highway surveys and infrastructure surveys in the UK. Imagine covering miles of busy roads or sprawling urban sites in a fraction of the time it used to take, all while keeping things safe and accurate. At Castle Surveys, we’ve seen firsthand how mobile mapping surveys make this possible, delivering 3D data that’s not just reliable but also incredibly useful for real projects.

This piece dives into what mobile mapping systems really are, how 3D mobile mapping works in practice, and the ways they shine in transport, construction, utilities, and asset management. Whether you’re a civil engineer juggling tight deadlines or an infrastructure planner mapping out the next big development, you’ll find plenty here to spark ideas.

What Are Mobile Mapping Systems?

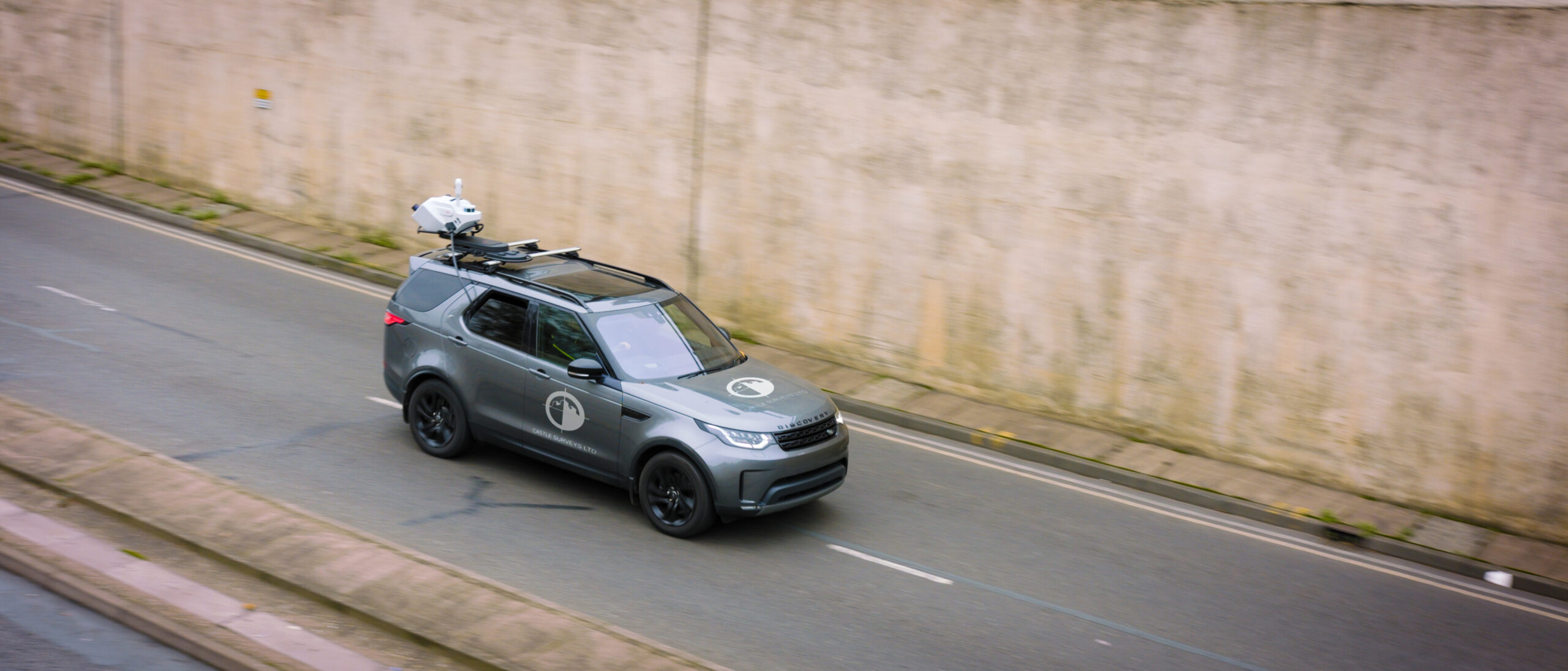

Let’s start with the basics. Mobile mapping systems, often called MMS, are clever setups that grab geospatial data on the move. They’re like a high-tech van full of sensors, capturing everything from road surfaces to building facades without stopping every few metres. Think LiDAR for laser-precise 3D scanning, GNSS for pinpoint location tracking, and cameras that snap high-res photos to add colour and detail to the picture.

We’ve used these on everything from quiet country lanes to the M25 at rush hour, and the difference from old-school methods is night and day. Traditional surveys might have you setting up tripods and total stations for hours, measuring points one by one, but mobile mapping? It rolls along, collecting data continuously. No more endless road closures or surveyors dodging traffic, which is a massive relief for everyone involved.

What sets 3D mobile mapping apart is how it builds those full, immersive models. It’s not just flat maps; you’re getting point clouds dense enough to spot a kerb crack or a faded sign from afar. Ever tried piecing together a puzzle with half the pieces missing? That’s traditional surveying sometimes. With 3D mobile mapping, you’ve got the whole scene, ready for CAD or BIM right away.

And here’s a tip from our experience: pair it with something like a backpack SLAM unit for those tricky indoor spots or pedestrian paths. It’s brilliant for heritage sites where you can’t drive a van through ancient streets.

How 3D Mobile Mapping Works

So, how does it all come together? Picture this: you’re planning a highway survey. First, we map out the route, check for any GNSS black spots like tunnels or dense city blocks, and set up control points with good old GNSS rovers for accuracy checks. It’s like laying the foundation before building a house, you know?

Once that’s sorted, the vehicle hits the road, usually at normal speeds to blend in with traffic. The LiDAR fires off thousands of laser pulses per second, bouncing back to measure distances and build that 3D point cloud. Meanwhile, GNSS and IMUs keep track of exactly where the van is and how it’s tilting or turning, so every point snaps into the right global spot. Cameras kick in too, grabbing geotagged images that let you virtually walk the route later.

Processing is where the magic happens, or the hard graft, depending on how you look at it. Back at base, software cleans up the raw data, removes glitches from passing cars or leaves, and merges multiple runs if needed. We always run checks against those control points to hit the centimetre-level accuracy clients demand. The output? A treasure trove: orthoimages for flat views, DTMs for terrain analysis, and full 3D models that plug straight into your design software.

For infrastructure surveys, this workflow cuts field time by up to 80%, which is a game-changer on projects where delays cost a fortune. We’ve done rail corridors this way, capturing tracks, signals, and overhead lines in one pass, then handing over BIM-ready files that save weeks in modelling. It’s not perfect, mind, you still need static scans for super-detailed bits, but overall, it’s efficient and spot-on.

One thing that always surprises people: in GNSS-poor areas, SLAM steps up, using the environment itself to track position. It’s like the system learning as it goes, which keeps things accurate even under bridges or in leafy suburbs.

An Inertial Measurement Unit (IMU) is a compact electronic device packed with sensors that measure motion, specifically acceleration and rotational rates, across three axes: pitch, roll, and yaw. You’ll find accelerometers—which capture changes in velocity—and gyroscopes—which detect how an object rotates. Some IMUs include magnetometers to help keep track of heading, especially useful when GPS signals drop out or get blocked.

In mobile mapping systems, the IMU serves a crucial role. It continuously monitors the position and orientation of the mapping platform as it moves—be that a survey van following a winding country lane or a SLAM backpack navigating a busy rail station. Why is the IMU so important? Well, when you’re moving, even small bumps, vibrations, or turns can throw off sensor readings. The IMU fuses its acceleration and rotation data to correct for these changes, ensuring every point in your 3D survey is accurately mapped with respect to real world coordinates—even when GPS coverage is limited by trees, tall buildings, or tunnels.

Without a precise IMU, mobile mapping data would end up scattered, unreliable, and much less useful. Put simply, it’s one of the most vital ingredients for delivering survey‑grade accuracy and seamless navigation, especially on challenging infrastructure surveys. This behind-the-scenes technology lets surveyors capture detailed reality at speed, linking the movement on the ground with high-precision digital models above it.

Key Advantages of Mobile Mapping Systems

Why bother with mobile mapping when traditional tools have worked for decades? Well, let’s be honest, those old methods can feel frustratingly slow on big jobs. Mobile mapping systems flip that script, offering speed that doesn’t compromise on quality.

Take coverage: you can survey 50km of highway in a day, grabbing data on everything from potholes to power lines. That’s a huge boost for time-sensitive infrastructure surveys, where every hour counts. And safety? Huge win. Surveyors stay inside the vehicle, no stepping into live lanes, which cuts risks dramatically. We’ve all heard those near-miss stories from site work; this tech helps avoid them altogether.

Accuracy is another standout. These systems hit sub-centimetre precision, creating point clouds so detailed you can measure sign heights or barrier alignments without a second visit. For asset management, that’s gold, letting you spot issues early and plan fixes smartly.

Cost-wise, it’s a no-brainer for repeat or large-scale work. Labour drops, no massive traffic management fees, and the data’s reusable, so one mobile mapping survey feeds design, construction, and maintenance teams. On a recent project, we saved a client 40% compared to static methods, and they were chuffed. But it’s not just numbers; it’s about making projects smoother, less disruptive, and frankly, more enjoyable to deliver.

Ever wonder how it stacks up in wet UK weather? Robust setups handle rain fine, though we plan around the worst storms. That flexibility keeps things moving.

REQUEST A QUOTE

Real-World Applications of Mobile Mapping Systems

Mobile mapping isn’t some lab experiment; it’s out there solving real problems every day. Let’s break it down by sector, with examples that show how highway surveys and infrastructure surveys come alive.

Transport and Infrastructure Mapping

Highway surveys are where mobile mapping really struts its stuff. Local councils and national agencies use it to assess road conditions without halting traffic. We’ve mapped entire A-roads, capturing lane widths, verges, and drainage in one go, feeding straight into resurfacing plans. It’s quick, and the 3D output helps prioritise the worst bits first.

For asset inventories, think signage audits or lighting checks across urban networks. A single pass tags hundreds of poles and signs, creating a database that’s easy to update yearly. Rail’s similar: corridor surveys for bridges and tunnels support upgrades like electrification, with models showing exact clearances. On one job, this caught a potential clash weeks before construction, saving headaches.

Junctions and roundabouts? Mobile mapping nails the geometry, from sightlines to pedestrian crossings, boosting safety designs. It’s versatile, too, blending with drone work for overpasses.

Utilities and Underground Services

Utilities love mobile mapping for corridor surveys, especially PAS128 jobs. It maps surface features like manholes and cabinets precisely, then layers in GPR data for underground views. No more guessing where lines run; you get a 3D clash model that flags risks upfront.

Asset verification is key here. Overhead cables, substations, even pipe bridges, get captured in context, aiding maintenance routes. We’ve done this for water companies along rural pipelines, combining boat-based mobile mapping for river sections. It minimises digs and disruptions, which is always a win in crowded areas.​

Clearance planning? Spot on. Before new builds, the 3D data checks against existing utilities, avoiding costly surprises. It’s safer, too, keeping teams off-site.

Construction and Engineering Projects

In construction, mobile mapping sets the stage with pre-build topographic baselines. For a new estate, we survey access roads and boundaries, delivering a full 3D context model. Ties perfectly into BIM, letting designers see how their plans fit the real world.

Progress monitoring is where it shines next. Repeat scans track earthmoving or structure installs, comparing against plans to catch deviations early. On a motorway widening scheme, this kept things on schedule, with as-builts ready for handover.

BIM integration? Seamless. Point clouds import into Revit or Civil 3D for clash detection, saving rework. We’ve seen it cut design iterations by half, which feels like a breath of fresh air on complex sites.

Urban Planning and Smart City Data

Cities are buzzing with mobile mapping for street audits. Footways, bollards, traffic calming, all captured for active travel plans. It helps make spaces more inclusive, spotting barriers for wheelchairs or bikes.

3D city models from this data drive visualisations for consultations. Imagine showing stakeholders a fly-through of a regenerated high street; it’s engaging and cuts misunderstandings. For smart cities, asset tracking of signals and bins feeds IoT systems, improving efficiency.

Change detection is handy too, like monitoring urban growth or flood risks. One council used our surveys to update models post-development, aiding long-term planning.

Heritage and Environmental Applications

Even softer sectors benefit. For heritage surveys, mobile mapping documents streets or monuments non-invasively. We’ve scanned historic bridges, creating models for restoration without scaffolding.

Environmentally, it’s ace for embankments or riverbanks in highway surveys. Tracks erosion over time, supporting risk assessments. Cliff faces along coastal roads? Captured safely from afar, with repeats showing movement. It’s about preservation without intrusion, which matters a lot in the UK’s protected landscapes.

These applications show mobile mapping’s reach, from gritty infrastructure to delicate sites.

Combining Mobile Mapping with Other Survey Methods

No one’s saying mobile mapping does it all alone; it’s best with mates. At Castle Surveys, we mix it with drone LiDAR for aerial gaps, like over rooftops or steep slopes. Static 3D laser scanning fills in for interiors or high-detail spots, while topographic surveys add ground control.

This hybrid setup verifies everything, giving you a rock-solid dataset. For a full infrastructure survey, mobile mapping handles the corridors, drones the heights, and static the nooks. Result? Comprehensive outputs, from 2D plans to federated BIM, all cross-checked. It’s like having a full toolkit, not just one hammer.​

We’ve tailored this for rail projects, blending methods to meet Network Rail specs. Flexible and thorough, that’s the goal.

Why Choose Castle Surveys for 3D Mobile Mapping?

Picking a partner for mobile mapping surveys matters. We’re not just tech users; our team’s lived this for years, from M6 upgrades to city digital twins. We deploy nationwide, fast, with RICS accreditation and ISO processes ensuring every job’s top-notch.

Our kit? Cutting-edge LiDAR like Leica systems, integrated for seamless 3D mobile mapping. Proven on highways, utilities, you name it, with deliverables in your format, be it CAD, GIS, or interactive viewers.

What sets us apart is the integration: link to our 3D laser scanning or BIM surveys for end-to-end solutions. Clients tell us it’s the reliability that counts, plus our focus on safety and minimal fuss. Ready for your highway survey or infrastructure push? We’re here to make it straightforward.

Conclusion

3D mobile mapping systems are proving indispensable, reshaping highway surveys and infrastructure surveys with speed, safety, and smarts. From dodging disruptions on busy roads to building detailed city models, they deliver efficiency that modern projects crave.

At Castle Surveys, we’re passionate about putting this tech to work for you, whether it’s a quick asset check or a major development baseline. It’s not just data; it’s decisions made better, projects delivered smoother.

Looking to capture accurate 3D site data quickly and safely? Contact Castle Surveys Ltd today to discuss our mobile mapping solutions for your next project. Let’s chat about how we can support your highway surveys or infrastructure needs.
