Integrating Drone Progress Photography into BIM Workflows

It’s no secret that data is driving modern construction more and more every day. Traditional surveys and ground reports are no longer the only tools used by project teams. Rather, they are using powerful digital tools that provide a real-time, accurate picture of progress. One of the most useful tools in this new environment is drone progress photography, particularly when paired with building information modelling (BIM).

One could argue that drones are the eyes of BIM. While BIM connects everything below the surface, they quickly record what’s happening above ground. The outcome? a smooth, up-to-date, and mutually trusted relationship between digital design and physical construction.

Drones have been incorporated into numerous BIM workflows at Castle Surveys, including commercial construction, infrastructure projects, and historic renovations. The impact they have on stakeholder communication, coordination, and progress tracking is astounding. Let’s examine more closely how and why this integration is influencing construction’s future.

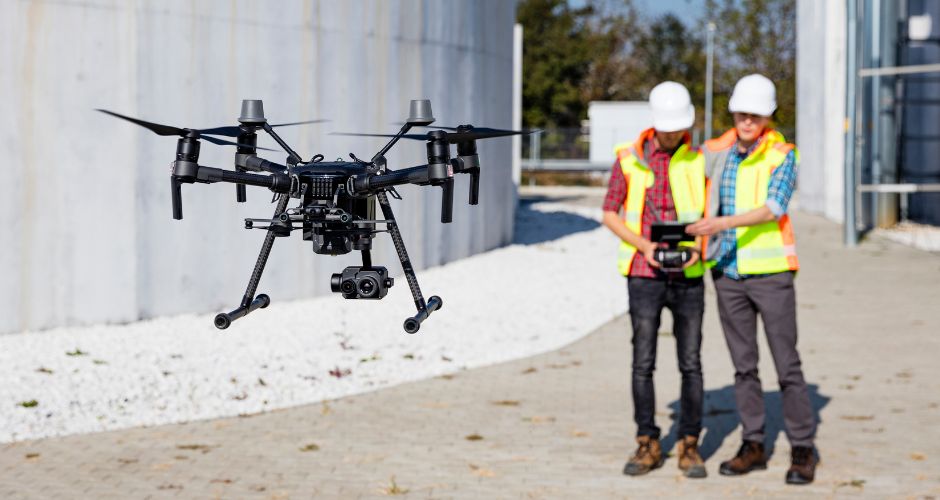

What Is Drone Progress Photography?

It’s important to define drone progress photography before moving on to integration.

Basically, it’s the methodical use of drones (also called UAVs or UAS) to take aerial photos. To precisely record what’s happening on site, drones can be flown at prearranged intervals, such as weekly, fortnightly, or monthly. Every flight gathers hundreds or even thousands of high-resolution photos from strategically chosen locations, guaranteeing that the site is covered from every angle.

After processing, these pictures yield a variety of potent results:

• Orthophotos are big, map-like pictures that are assembled from several photos that have all been adjusted for perspective and scale. These can be precisely measured and spatially referenced.
• 4K Video and Flythroughs: fluid, cinematic snippets that demonstrate development over time.
• Georeferenced Images: These are individual photos that are precisely linked to site coordinates, making it simple to overlay them with survey data or BIM models.
• 3D Point Clouds and Digital Surface Models (DSMs): The imagery can even replicate intricate 3D surfaces when photogrammetry processing is used.

Drone deliverables are invaluable on ongoing construction projects due to their extreme flexibility. Drone imagery produces a comprehensive, current view that perfectly complements conventional survey and BIM workflows, whether it is used to record progress, verify as-built conditions, or check site logistics.

Why Drone Footage Is So Valuable for BIM

1. Supporting Model Accuracy and Documentation

Any BIM coordinator will probably tell you that mismatched information is the main cause of project problems. The site conditions may indicate something different from what the BIM model depicts. It should come as no surprise that projects change quickly, and manual updates may fall behind.

Real-world images can be directly superimposed on the digital model by incorporating drone-captured imagery into the workflow. Imagine being able to open Revit, zoom in on a building, and view the construction process in real time as a photograph. Without depending solely on manual field reports, it’s a useful method to maintain the model’s accuracy and visual verifiability.

For instance, we recently worked on a sizable logistics facility with constantly shifting site conditions. The project team was able to find differences between what had been installed and the intended drainage layout by taking weekly orthophotos. Time, money, and frustration were later saved because the problem was fixed before the concrete dried.

Because drone data is visual, even team members who are not as familiar with BIM software can identify possible problems. The model is made more approachable and guarantees that everyone is viewing the same, accurate image by quickly superimposing current drone imagery.

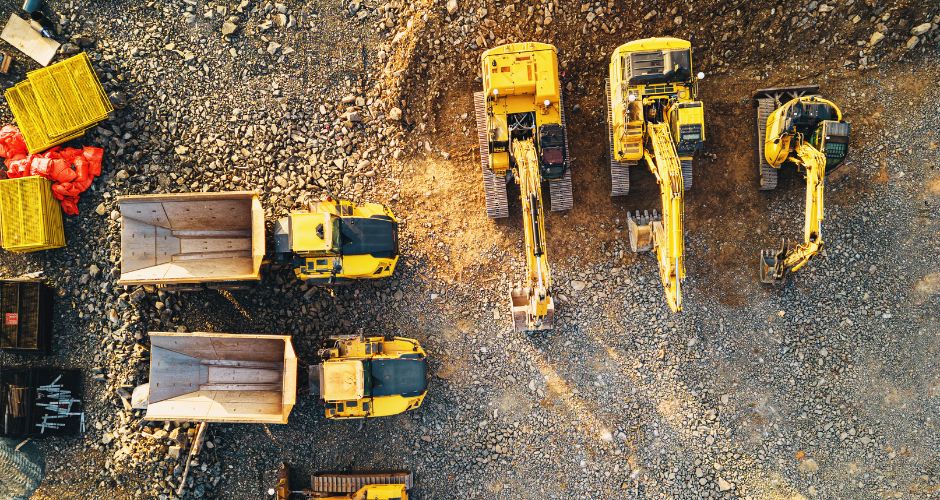

2. Real-Time Progress Monitoring

Real-time progress tracking is a significant benefit of drone integration in BIM. You can make a time-series record of the build’s progress by using regular drone flights.

Trends can be quickly identified thanks to these frequent captures. Are the foundations finished? Has the excavation process gone as planned? Are there any delays in comparison to the original timetable? When you have aerial data collected over time and connected to your BIM systems, questions like these can be instantly answered.

We have witnessed locations where this method has transformed project meetings. Managers can view exact before-and-after comparisons in their BIM environment rather than having to sift through outdated photos or rely on anecdotal feedback. It eliminates the finger-pointing that occasionally appears in project reviews and encourages concise, evidence-based conversations.

Drone progress tracking is also excellent from a safety standpoint. Long before they result in mishaps, a single aerial inspection can identify potential access problems, unsecured materials, and site congestion. Visualising this data offers a proactive approach to health and safety and is in perfect harmony with the duty-of-care requirements on contemporary construction projects.

REQUEST A QUOTE

3. Improving Communication with Stakeholders

Have you ever had to explain a technical model to someone who doesn’t “speak BIM”? It can be difficult. If you’re not accustomed to interpreting them, even the most complex 3D models may seem abstract. Visuals are so powerful because of this.

For construction sites, drone footage effectively fills this communication gap. Anybody can understand the natural, intuitive quality of aerial imagery and flythroughs. Clients or investors can literally see the project taking shape when they view a drone video that is integrated with the BIM model.

This is particularly useful for client updates and progress reports. The images speak for themselves; a lengthy technical explanation is not necessary. Additionally, it fosters trust, which is crucial for long-term construction partnerships.

4. Enhanced Team Coordination

Every team on site benefits from drone imagery, not just management. Current images of the logistics zones, access points, and site layout are available to engineers, subcontractors, and consultants. Before mobilising tools or supplies, they are able to effectively plan and prevent conflicts.

Everyone gets their information from the same digital source when they upload images straight into the BIM environment. No drawings that contradict each other. There are no outdated site images circulating in inboxes. One main centre of truth.

This shared visibility is what makes BIM integration with drone data so revolutionary for collaboration and coordination, even though it may seem straightforward.

Technical Integration of Drones into BIM

Let’s get technical because it takes more than just plugging and playing to get drone data to function flawlessly within BIM. It depends on accuracy, quality assurance, and a strong grasp of geography.

Our systematic approach at Castle Surveys guarantees that every aerial output precisely matches your current BIM datasets. Usually, it entails the following actions:

1. Planning and Flight Path Design

Effective planning is the first step in any project. We determine the precise boundaries of the survey area, evaluate any flight limitations, and create a route that maximises coverage with the best possible overlap. Throughout the project, dependable time-lapse comparisons are made possible by automated flight planning, which guarantees consistency between sessions.

We occasionally create several flight paths at different altitudes for complicated or multi-story locations. This records both the general context of the site and in-depth close-ups of important structures like steel frames, façades, and cores.

2. Ground Control and Georeferencing

Accuracy becomes the next priority after the flight plan is established. Every image is spatially anchored using RTK GNSS and ground control points (GCPs). This guarantees that every photograph is accurately connected to the site’s coordinates, which are typically within centimetres.

Why is this important? Because the drone data must precisely match current surveys, design files, and coordinate systems when integrating with BIM. Although misalignment may not seem like much at first, it can lead to serious problems when measuring or referencing later on.

3. Data Processing and Quality Assurance

Photogrammetry software is used back in the office to stitch and process drone imagery. Depending on the requirements of the project, this generates digital surface models, high-resolution orthomosaics, or even 3D textured meshes.

Following a thorough quality assurance procedure, outputs are examined for geospatial error, distortion, and variations in lighting. This stage usually guarantees that the results fulfil the quality requirements specified in professional surveying standards.

4. Integration into BIM Platforms

The data can be imported into BIM authoring or coordination programs like Autodesk Revit, Navisworks, Civil 3D, or Bentley OpenBuildings after it has been processed and validated.

Orthophotos are frequently used by Revit users as surface textures or underlays to confirm progress. Site managers can directly superimpose drone imagery onto models in Navisworks or comparable programs for side-by-side comparisons.

Making sure that coordinate integrity and file format are maintained during this procedure is crucial. TIFs, LAS point clouds, and OBJ meshes must all precisely match the BIM coordinate framework.

5. Creating a Continuous Feedback Loop

Routine repetition is the last piece of the puzzle. The BIM workspace is updated with new visual layers as new captures are received. This creates a dynamic build record over time, which is essentially a “visual timeline” of development that is directly connected to model data.

Teams can examine how construction progressed, verify finished projects, or examine plan deviations by scrolling back through previous months. It transforms BIM into a living visual record that reflects reality rather than merely a design model.

Castle Surveys’ Drone and BIM Capabilities

Through years of fieldwork, testing, and cooperation with project teams throughout the UK, we have improved our drone-to-BIM workflow. Making aerial capture easy, compliant, and incredibly effective for our clients is our constant objective.

In actuality, that looks like this:

Licensed Drone Pilots and CAA Compliance

CAA-certified pilots operate all of our drone operations in accordance with the most recent UK aviation regulations. Particularly at busy or sensitive locations, we take airspace management very seriously. This implies that safety checks, flight authorisations, and planning notifications are all managed in accordance with best practices.

Survey-Grade Accuracy with RTK GNSS

Our drones can achieve centimeter-level positional accuracy across image datasets thanks to Real-Time Kinematic (RTK) GNSS receivers. This guarantees accurate alignment with your BIM coordinates and is comparable in precision to total station or GNSS survey work.

Automated Flight Paths for Consistency

We store flight parameters to repeat subsequent flights along the same paths after the project’s initial capture setup is completed. This enables like-for-like visual comparisons over time, which is perfect for documenting disputes or evaluating long-term progress.

BIM-Ready Data Deliverables

We are aware that compatibility is important. For direct use in BIM software suites like Revit, Navisworks, or SketchUp, our deliverables are organised and formatted. Every dataset, including textured models, 3D meshes, and orthophotos, fits easily into your current digital workflow.

Integration Support and Collaboration

We do more than simply transfer files. Our technical staff guarantees that outputs align properly within your BIM environment, supports data integration, and offers guidance on coordinate transformation. We can assist with anything from file handling to import troubleshooting.

Your project will benefit from dependable, accurate, and repeatable data that improves every aspect of the building process in addition to beautiful visuals thanks to this combination of technical expertise and practical teamwork.

The Real-World Impact of Drone Integration

Whether it’s a large-scale motorway upgrade or a small-scale urban redevelopment, the advantages of drone integration with BIM are evident in every kind of project. Let’s look at some instances where the benefits of drone progress photography are particularly evident.

Large-Scale Infrastructure

Large, complicated sites that change quickly are frequently covered by infrastructure projects. Conventional ground-based monitoring can be sluggish and insufficient. Drones provide a means of simultaneously capturing everything, including haul road conditions and bridge deck pouring progress, all of which can be precisely mapped.

Engineers can monitor surface-level changes over time and compare construction to design alignment when this imagery is layered into a BIM environment. It’s an effective way to guarantee that vital assets are constructed correctly the first time.

Commercial Builds and Warehouses

Transparency is essential for high-value commercial developments. Contractors must demonstrate that progress is in line with milestones, and investors want to see how their funds are being used. Drone progress photography makes reporting simple and reliable by delivering the evidence through consistent, date-stamped imagery.

By connecting visuals to particular model elements or stages, BIM integration goes one step further. When a client clicks on a portion of the model, drone photos of the same area from earlier in the month appear instantly. Paper reports just can’t provide this clarity.

Regeneration and Heritage Work

Drones are not limited to new construction. Before and during restoration, they offer crucial context for heritage or regeneration initiatives. Accurate planning around historic structures is supported by the integration of aerial imagery with BIM, which also records sensitive work for compliance documentation.

Sustainability and Efficiency

Drones help create a more sustainable and effective workflow in addition to improving visibility and accuracy. Consider this: a single drone flight minimises disruption to on-site employees, replaces hours of manual inspection, and lowers travel emissions from frequent site visits.

Additionally, fewer unplanned site interventions result from incorporating drone data into BIM. You save time and carbon when you can identify problems early and confirm remotely. This is another reason why a lot of developers are incorporating drone-based monitoring into their ESG and sustainability plans.

Embracing the Future of Construction Monitoring

In this industry, technology has taught us that integration is crucial. The best outcomes come from connecting the systems that already function and bolstering them with new data sources rather than implementing ostentatious devices or compartmentalised software.

BIM and Drone Progress Photography are prime examples of that collaboration. When combined, they produce an ongoing feedback loop between office and field, model and site, and design and reality. Project decisions are based on facts rather than conjecture, and data flows easily both ways.

This is the present, not just the future, in our opinion at Castle Surveys. More clients than ever before are requesting drone deliverables that are compatible with BIM, and the outcomes are self-evident. Faster project completion, improved visibility, and genuine collaboration.

Bringing It All Together

What does this mean for us now? If you work as a survey specialist, project manager, or BIM coordinator, the message is extremely clear. It’s not merely a nice-to-have to incorporate drone progress photography into your BIM workflow. It’s turning into a necessity.

You receive accurate updates, real-world validation, and an auditable progress record that is simple to share and understand with every flight. Decision-making becomes more assured, communication becomes simpler, and site operations become more transparent.

The true beauty is that the system essentially operates on its own once your process and alignments are set up correctly. Regular flights literally keep your teams in sync, your dashboards current, and your BIM updated with new data.

CONTACT US

This post was written by Paul Jackson
