How Mobile LiDAR Mapping and GPS Work Together to Deliver Ultra-Accurate Surveys
March 10, 2026 12:22 pmMobile LiDAR mapping captures millions of laser measurements every second.
GPS provides global positioning, but it can’t achieve full survey accuracy on its own.
The real precision comes when LiDAR, GPS, the inertial measurement unit (IMU), and ground control points all work together.
The result? Fast, safe, trustworthy survey data that’s ideal for large-scale, infrastructure, and transport projects.
Where Precision Meets Progress
In the world of surveying, accuracy isn’t just a nice-to-have, it’s the foundation everything else rests on. You can have the best design team in the world, but if your base data’s off by even a few centimetres, problems start snowballing quickly.
That’s exactly why mobile LiDAR mapping and GPS integration have changed the game. They’ve made it possible to collect highly accurate data while staying safe, saving time, and cutting down site disruption.
But there’s often still confusion about how it all works. You might have heard people say GPS alone is “accurate enough” or that LiDAR sensors “do all the work.” The truth is, neither of those statements is entirely right. Real-world, ultra-accurate mobile mapping comes from the combined orchestration of LiDAR, GPS, IMU, and ground control working hand in hand.
Let’s break that down.
What Exactly Is Mobile LiDAR Mapping?
Put simply, mobile LiDAR mapping is a highly detailed method of scanning and recording physical environments while moving. It captures millions of 3D measurements every second using lasers that bounce off surfaces and return to the sensor.
Each “bounce” becomes a point of data, and when you combine them, you get what’s called a point cloud. That point cloud shows an incredibly detailed three-dimensional snapshot of the world – streets, slopes, walls, bridges, rail tracks, signs – all with measurable accuracy.
How It Works in Motion

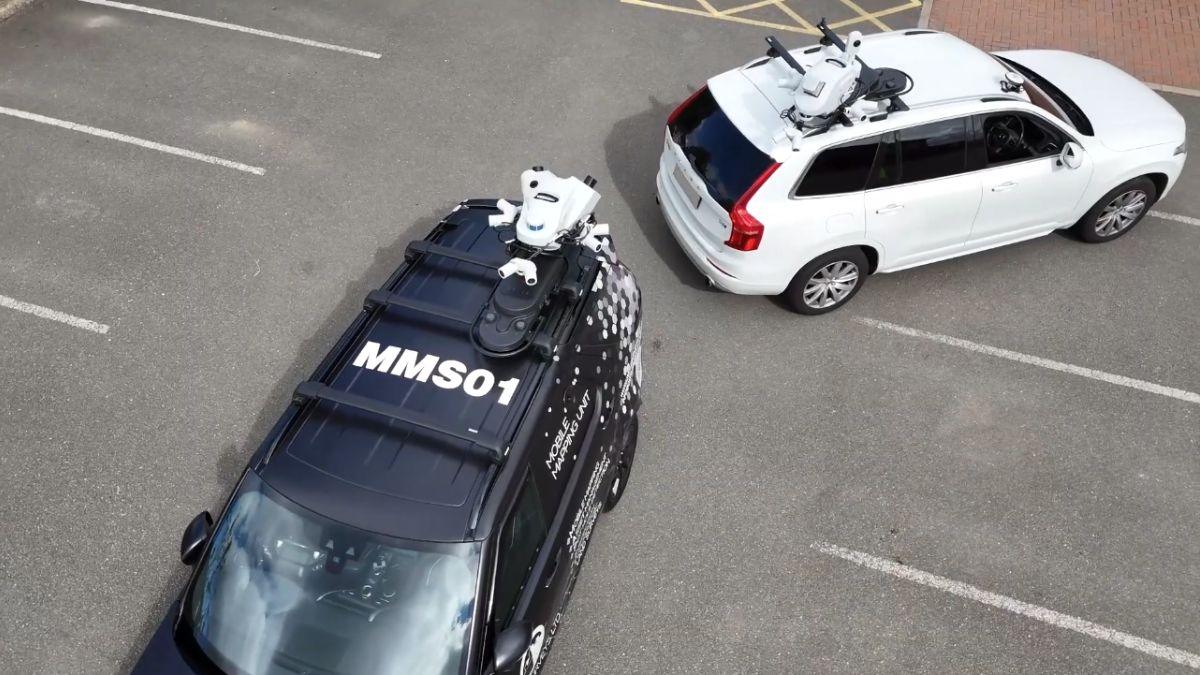

Imagine a van fitted with LiDAR scanners, high-precision GNSS receivers, and cameras driving down a dual carriageway. While you’re moving, the sensor emits constant laser pulses in every direction – left, right, up, down – capturing the road, the kerbs, the lamp posts, even overhead cables.
Pair that with mobile mapping systems used on boats, trains, or even off-road rigs, and the result is the same: a dense digital twin of the surrounding environment.
The beauty of this method? You don’t have to shut lanes, erect scaffolding, or send surveyors into live traffic zones just to take measurements. You can capture everything in high resolution while the vehicle keeps moving.
And it’s fast. Large routes that would take a static survey team days to cover can be mapped in just a few hours.
The Role of GPS in Mobile Mapping
If LiDAR is the eye of the system, GPS is its global compass.
The mobile mapper GPS isn’t there to scan or measure directly; its job is to tell the system exactly where all that LiDAR data belongs on the Earth. Every scan point needs a reference coordinate – a point in space that says, “this is precisely where this laser hit.”
What GPS Actually Provides
GPS offers two things surveyors rely on:
- Position, meaning the coordinates (latitude, longitude, and elevation).
- Time, meaning a precise reference for when each laser pulse was fired.
That timestamping allows the sensor’s data stream to stay synchronised. Without GPS, you’d have a great 3D drawing, but no idea where it actually sits on the planet.
Why GPS Alone Isn’t Enough
Here’s the catch – GPS signals, no matter how advanced, aren’t flawless. Buildings, trees, tunnels, and terrain can interfere with the satellite connection. Even military-grade receivers see random “drift” when signals bounce around or atmospheric conditions change.
If you’ve ever used a car sat-nav in a city and seen your icon suddenly jump sideways onto a parallel street, you’ve seen GPS drift in action. For general navigation, that’s fine. But in surveying? A positional error of even five centimetres could derail an engineering project.
So yes, GPS is crucial – but not on its own. That’s why we turn to another key player: the IMU.
How LiDAR, GPS, and IMU Work Together
The LiDAR provides the geometry. The GPS gives the location. The inertial measurement unit (IMU) fills in the motion between them.
Why the IMU Matters
The IMU senses acceleration, tilt, and rotation thousands of times a second. So if the mapping vehicle turns, hits a bump, or banks uphill, the IMU knows exactly how it moved.
That information’s vital because the LiDAR scanner keeps firing continuously. If the system doesn’t know the exact angle or position of the scanner at each moment, even tiny wobbles could distort the end result.
Essentially, the LiDAR tells us what’s there, GPS tells us where it is, and the IMU tells us how the scanner moved when it recorded it.
A Real-World Example
Let’s say you’re mapping a motorway interchange, travelling at 60 mph. The scanner fires millions of pulses per second, while the IMU and GPS track motion and position. As each sensor records simultaneously, time-stamped data flows into the onboard software, constantly aligning itself.
Later, in processing, everything syncs up perfectly. The data from each source (LiDAR, GPS, IMU) forms one coherent 3D model of the world, locked to exact geographic coordinates.
It’s not one technology leading the other; it’s a partnership.
Achieving Survey-Level Accuracy
So how do we go from “good” data to the kind of centimetre-level accuracy that engineers trust for design? Through calibration, control, and post-processing.
Setting the Reference with Ground Control Points
Even when the vehicle’s sensors are operating at full performance, we still need fixed, known coordinates on the ground to verify the system. That’s where ground control points (GCPs) come in.
Surveyors establish these using total stations or static GNSS observations. They’re the physical “truth” markers against which all geospatial data can be checked. When the mobile mapping dataset is processed later, the software compares LiDAR coordinates to these known points and adjusts tiny offsets until everything matches.
It might sound meticulous – and it is – but it’s this discipline that turns advanced tech into reliable survey data.
Post-Processing the Data
Once the data’s collected, it goes through a refinement stage known as post-processed kinematic (PPK) GPS correction. This step uses reference base stations to fine-tune the GPS trajectory. The IMU helps bridge any signal gaps, smoothing the vehicle’s path mathematically.
Anomalies caused by reflections, surface noise, or dense vegetation are then filtered out. The end result is a clean, accurate digital model, ready to overlay on design drawings or integrate with CAD and BIM systems.
Some teams also combine mobile LiDAR with static scanning or drone mapping if extra coverage is needed. Think of it as layering perspectives to eliminate blind spots.
Accuracy in Real-World Conditions
Now, let’s talk about performance in less-than-perfect circumstances.
Urban Environments and Signal Challenges
Picture a busy city centre surrounded by tall buildings – classic satellite signal killers. When the GPS loses direct line of sight, the IMU takes over, maintaining the trajectory until the connection returns.
Later, back in processing, any drift is corrected using nearby control or adjustment algorithms. That’s how mobile mapping can still achieve consistent quality even when the environment isn’t cooperating.
High-Speed Transport and Large Areas
Take a motorway or a rail corridor. These are long, repetitive environments where consistency counts more than anything. Using mobile LiDAR, we can capture hundreds of kilometres at speed, maintaining uniform accuracy throughout.
The integration of LiDAR, GPS, and IMU ensures nothing slips out of place, no matter how fast the platform moves. Whether you’re dealing with overhead gantries or small kerb details, every element aligns exactly as it should.
Why This Technology Has Reshaped Surveying
We’ve come a long way from total stations and tripods.
When you see the sheer volume of digital detail mobile mapping produces – combined with the efficiency and safety improvements – it’s easy to understand why so many in the industry are moving this way.
Faster Data Capture, Minimal Disruption
With mobile mapping, there’s rarely any need for closures or restricted working zones. Roads can stay open, trains can keep running, and teams can capture data while everything carries on around them. It saves time and money, yes, but it also reduces inconvenience for the public – a win-win all around.
For infrastructure clients managing busy assets, that’s a big deal.
Consistency and Scale
Because everything inside the system is synchronised, accuracy stays consistent across long distances. It’s one dataset, one coordinate system, one complete view. From city-scale 3D models to transport corridors and floodplain assessments, the results give planners and engineers a single source of truth.
And that level of confidence helps avoid the familiar downstream issues – like misaligned designs or unexpected site rework – that slow projects down.
When Mobile LiDAR Mapping Is the Right Choice
Every tool has its ideal use. Mobile LiDAR shines in projects that demand fast, wide-area data capture without compromising accuracy.
Infrastructure and Transport Projects
Highways, railways, bridges, and tunnels are perfect candidates. Mobile LiDAR gives you comprehensive coverage along corridors that would be difficult, even dangerous, to survey traditionally.
If you’d like a sense of how this works in practice, explore some of our mobile mapping project examples.
Asset Management and Change Detection
It’s just as valuable for asset owners maintaining large networks. With repeat surveys, changes in road conditions, surface wear, or vegetation encroachment can be tracked precisely over time. You can spot subtle shifts long before they become costly maintenance problems.
These advantages are detailed further across our mobile LiDAR mapping services.
Knowing the Limits and Managing Expectations
Even the best systems have boundaries, and being open about them builds credibility.
Where Extra Surveys Help
Dense forest areas, heavy canopy, or tunnels can block LiDAR or GPS signals. In these spots, static scanning or drone photogrammetry can fill the gaps. Similarly, subsurface assets like pipes and cables need GPR or utility surveys in support – LiDAR can’t see below ground.
Setting Realistic Accuracy Goals
Environmental conditions, line-of-sight, and control quality all play a role in final outcomes. That’s why it helps to define accuracy expectations early. We’ve found this approach avoids surprises later and ensures the right survey method is paired with the right project type.
For a deeper look at how we manage this, take a look at how we ensure survey accuracy.
The Bigger Picture: Integration Creates Confidence
At its heart, mobile mapping is about integration – not gadgets but coordination.
The system works because each sensor complements the others. GPS provides the structure, IMU ensures stability, and LiDAR fills in the detail. Ground control and post-processing refine it all until every point in the dataset stands up to scrutiny.
Remove any one part, and the accuracy falls apart. Together, they form a system that’s robust, resilient, and remarkably precise, even in challenging environments.
Modern mobile laser scanning is more than innovation for its own sake. It’s proof that technology, when applied thoughtfully, makes the industry safer, faster, and smarter.
If you’re planning a project and need detailed, high-confidence spatial data, explore our infrastructure surveying solutions or reach out to request a mobile LiDAR survey.
Seeing how LiDAR, GPS, and IMU actually perform together brings clarity you simply can’t get from theory alone.
